Genuine YC4S140-48(S56D1) Engine Parts - Cylinder Block, Piston, Cylinder Head
|
Engine Model |
YC4S140-48(S56D1) |
|
Rated Power |
140 HP (103 kW) |
|
Rated Torque |
450 N·m @ 1400-1800 rpm |
|
Emission Standard |
Euro IV / China IV |
|
Application Field |
Heavy-duty trucks, 7-7.5m buses, 3.8-8t light-duty trucks, construction machinery (loaders, excavators) |
|
Core Advantages |
Low fuel consumption (≤198g/kW·h), strong reliability, -30℃ cold start capability |
Product Description
Confirm Compatibility
All parts are 100% compatible with Yuchai YC4S140-48(S56D1) turbocharged diesel engine. With 3.8L displacement, 103kW rated power, and Euro IV compliance, this engine is widely used in medium/light-duty trucks and 4×2 vans. Our parts are tailored for its low-noise, fuel-efficient (199g/kW·h) design, meeting routine maintenance and emergency repair needs.
Parts Coverage
Our parts cover core systems of the engine: power core (cylinder block, piston, crankshaft damper), fuel & emission (injection pump, turbocharger, EGR), lubrication & cooling (oil pump, filter, water pump), and electrical & auxiliary (alternator, starter, ECU). EWP-marked wear parts are easy to identify.
Quality Assurance
All parts adhere to Yuchai’s technical standards, with part numbers matching the original catalogue. Key components use high-strength materials; wear parts pass strict tests. We offer an 18-month or 150,000km warranty, plus 24-hour English technical guidance and global after-sales service for seamless installation.
Practical Tips
For accurate selection, reference the original part number or provide your engine’s production batch. Our parts restore fuel efficiency and dynamic performance, minimizing downtime. Bulk orders enjoy preferential pricing—contact our team for tailored recommendations and support.
Detail Parts List

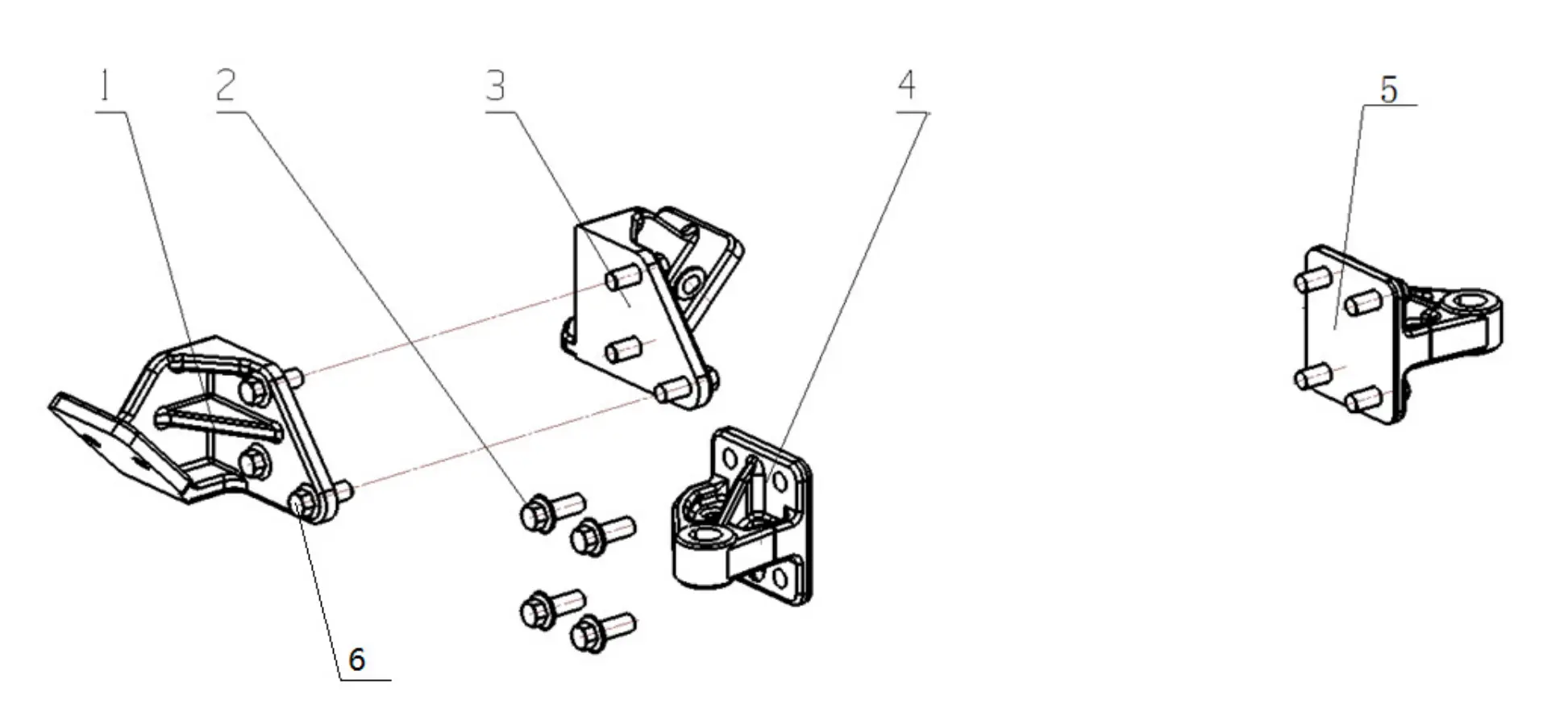

1、 S5500-1001000/02 Engine Suspension Assembly
|
NO. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
S5500-1001001A |
Front left support leg |
1 |
|
|
2 |
QT1841225TF2 |
Bolt M12×25 |
8 |
|
|
3 |
S5500-1001002A |
Front right support leg |
1 |
|
|
4 |
S5500-1001005 |
After left support leg |
1 |
|
|
5 |
S5500-1001004 |
After right support leg |
1 |
|
|
6 |
QT1841230TF2 |
Bolt M12×30 |
6 |
|
2、 S5500-1002000/01 Cylinder Block Assembly
|
NO. |
Part No. |
Description |
Qty |
Remark |
|
1 |
S2000-1002121A |
Locating bush |
2 |
|
|
2 |
YC7-38 |
Bowl-shaped tabular plug 38 |
1 |
|
|
3 |
S2000-1002106 |
Cylinder liner |
4 |
|
|
4 |
YC7-42 |
Bowl-shaped tabular plug 42 |
4 |
|
|
5 |
YC7-18 |
Bowl-shaped tabular plug 18 |
4 |
|
|
6 |
Q1841060 |
Bolt M10X60 |
1 |
|
|
7 |
SA000-1002201 |
Gear chamber |
1 |
|
|
8 |
Q1841025 |
Bolt M10X25 |
2 |
|
|
9 |
Q1841240TF2 |
Bolt M12X40 |
1 |
|
|
10 |
S6000-1002904 |
Air compressor idler gear shaft |
1 |
|
|
11 |
S6000-1002940 |
Air compressor idler gear components |
1 |
|
|
12 |
S6000-1002907 |
wearing plate |
1 |
|
|
13 |
Q1841050TF2 |
Bolt M10X50 |
3 |
|
|
14 |
F3000-1002162A |
Lozenge pin |
1 |
|
|
15 |
YC24-1030 |
Straight pin 10X30 |
1 |
|
|
16 |
YC24-B1218 |
Straight pin 12X18 |
1 |
|
|
17 |
F3100-1002127 |
Flat pin |
1 |
|
|
18 |
Q1841025 |
Bolt M10X25 |
6 |
|
|
19 |
S2000-1002116 |
Thrust main bearing cover |
1 |
|
|
20 |
YC24-B0408 |
Straight pin 4X8 |
2 |
|
|
21 |
S2000-1002161 |
Cylinder block reinforcing plate |
1 |
|
|
22 |
S2000-1002701 |
Oil hollow bolt |
4 |
|
|
23 |
S2000-1002740 |
Nozzle parts |
4 |
|
|
24 |
S2000-1002118 |
Main bearing bolt |
10 |
|
|
25 |
S2000-1002117 |
Main bearing cap |
4 |
|
|
26 |
B8860-1002104 |
Aluminum block |
1 |
|
|
27 |
SA000-1002114B |
Cylinder block |
1 |
|
|
|
SA000-1002170B |
Cylinder block subassembly |
1 |
|
|
28 |
S2000-1002120 |
Camshaft bushing |
5 |
Easy wear part |
|
29 |
Q1841080TF2 |
Bolt M10X80 |
1 |
|
|
30 |
S2000-1002450 |
Tension pulley |
1 |
|
|
31 |
Q618B03 |
Plug NPT 3/8 |
1 |
|
|
32 |
YC7-28 |
Bowl-shaped tabular plug 28 |
3 |
|
|
33 |
YC7-42 |
Bowl-shaped tabular plug 42 |
|
|
|
34 |
S2000-1002460 |
Multi-wedge idle gear subassembly |
|
|
3、S5500- S5500---1003000/03 Cylinder head assembly
|
NO. |
Part No. |
Description |
Qty |
Remark |
|
1 |
S2000-1003001-386 |
Cylinder head gasket |
1 |
When disassemble, cylinder gasket can't be used again |
|
2 |
S2000-1003111A |
Intake valve |
8 |
|
|
3 |
S2000-1003103A |
Exhaust valve |
8 |
|
|
4 |
S2000-1003173A |
Intake valve seat ring |
8 |
|
|
5 |
S2000-1003174 |
Exhaust valve seat ring |
8 |
|
|
6 |
YC7-22 |
Bowl-type spacer22 |
18 |
|
|
7 |
YC7-10 |
Bowl-type spacer10 |
2 |
|
|
8 |
S2000-1003171B |
Cylinder head |
1 |
|
|
|
S2000-1003170B |
Cylinder head |
1 |
|
|
9 |
Q1841025TF2 |
Bolt M10X25 |
2 |
|
|
10 |
S5500-1003122 |
Front lifter |
1 |
|
|
11 |
Q1840815TF2 |
Bolt M8X15 |
1 |
|
|
12 |
S2000-1003178 |
Awl-plug union joint |
1 |
|
|
13 |
Q1840812TF2 |
Bolt M8X12 |
1 |
|
|
14 |
Q61904 |
Plug screw NPT 1/2 |
1 |
|
|
15 |
S5500-1207114 |
SupportⅠ |
1 |
|
|
16 |
Q1840512 |
Bolt M5X12 |
8 |
|
|
17 |
FGE00-1003270 |
Cover plate assembly |
1 |
|
|
18 |
SA000-1003201 |
Cylinder head cover spacer |
1 |
Eesy Wear Part |
|
19 |
SA000-1003205A |
Cylinder head cover |
1 |
|
|
20 |
SA000-1003247 |
Cylinder head cover bolt |
11 |
|
|
21 |
150-1003041F |
Oil filler cover |
1 |
|
|
22 |
150-1003043C |
Seal ring |
1 |
Eesy Wear Part |
|
23 |
S2000-1003202C |
Seal ring |
4 |
Eesy Wear Part |
|
24 |
S2000-1003002 |
Cylinder head long bolt |
18 |
|
|
25 |
S2000-1003109 |
Valve stem locks |
32 |
Eesy Wear Part |
|
26 |
S2000-1003116 |
Valve spring upper seat |
16 |
|
|
27 |
S2000-1003106 |
Valve spring |
16 |
|
|
28 |
S5500-1207115A |
Support Ⅱ |
1 |
|
|
29 |
YC208-B02360F |
O-ring 2.65x23.6 |
4 |
Eesy Wear Part |
|
30 |
S2000-1003176A |
Injector bordered jacket |
4 |
|
|
31 |
Q1841020TF2 |
Bolt M10X20 |
2 |
|
|
32 |
S2000-1003123 |
Rear lifter |
1 |
|
|
33 |
S2000-1003105 |
valve stem seal |
16 |
Eesy Wear Part |
|
34 |
Q61903 |
Plug screw NPT3/8 |
2 |
|
4、S2000-1004000/06 Piston & con-rod assembly
|
No. |
Part No. |
Description |
Qty. |
Remart |
|
1 |
S2000-1004002 |
Compression ring |
4 |
Eesy Wear Part |
|
2 |
S2000-1004003 |
Compression ring |
4 |
Eesy Wear Part |
|
3 |
S2000-1004100 |
Oil ring assembly |
4 |
Eesy Wear Part |
|
|
S2000-1004002* |
Piston ring subassembly |
1 |
|
|
4 |
Q43040 |
Block ring 40 |
8 |
|
|
5 |
S2000-1004004 |
Piston pin |
4 |
|
|
6 |
S2000-1004001 |
Piston |
4 |
|
|
7 |
S2000-1004202 |
Con-rod sleeve |
4 |
Eesy Wear Part |
|
8 |
S2000-1004201A |
Con-rod body |
4 |
|
|
9 |
S2000-1004006 |
Con-rod up tile |
4 |
Eesy Wear Part |
|
10 |
S2000-1004007 |
Con-rod down tile |
4 |
Eesy Wear Part |
|
11 |
S2000-1004204A |
Con-rod bolt |
8 |
|
5、S2000-1005000/03 Crankshaft damper assembly
|
NO. |
Part No. |
Description |
Qty |
Remark |
|
1 |
Q1841030TF2 |
Belt pulley clamping bolt M10 ×30 |
6 |
|
|
2 |
S2000-1005140B |
Rubber damper |
1 |
|
|
3 |
YC24-B0824 |
Stud pin 8×20 |
1 |
|
|
4 |
S2000-1005001 |
Crankshaft |
1 |
|
|
5 |
S2000-1005005 |
Main bearing shell (upper) |
5 |
Eesy Wear Part |
|
6 |
S2000-1005007 |
Crankshaft thrust shaft bushing |
4 |
|
|
7 |
S2000-1005002 |
Crankshaft timing gear |
1 |
|
|
8 |
S2000-1005039A |
Crankshaft gear side flange |
1 |
|
|
9 |
S2000-1005006 |
Main bearing shell (lower) |
5 |
Eesy Wear Part |
Product Advantages
●100% Yuchai OEM Genuine Parts：Produced on Yuchai’s original production line, 1:1 matching the engine.
●Perfect Fitment：Precision-machined to meet YC4S140-48(S56D1) technical specifications, no modification needed.
●Durable&Reliable：High-quality materials, passed 300,000+ working hours test.
●Global Warranty：12-month warranty, free replacement for quality issues.
●One-Stop Supply：Covers all parts of the engine, simplifying procurement.
Payment & Shipping Terms
● MOQ: 1 piece
● Packaging: Customizable wooden crate/carton
● Delivery: 3-20 working days (express: DHL/FedEx; sea freight for bulk)
● Payment: L/C, T/T, Western Union; tracking number provided in 24hrs
● After-Sales Service：24-hour technical support, global service network
