Genuine YC4S140-48(S56D1) Engine Parts - Alternator, Air Compressor, Steering Pump, Fan
|
Engine Model |
YC4S140-48(S56D1) |
|
Rated Power |
140 HP (103 kW) |
|
Rated Torque |
450 N·m @ 1400-1800 rpm |
|
Emission Standard |
Euro IV / China IV |
|
Application Field |
Heavy-duty trucks, 7-7.5m buses, 3.8-8t light-duty trucks, construction machinery (loaders, excavators) |
|
Core Advantages |
Low fuel consumption (≤198g/kW·h), strong reliability, -30℃ cold start capability |
Product Description
Confirm Compatibility
All parts are 100% compatible with Yuchai YC4S140-48(S56D1) turbocharged diesel engine. With 3.8L displacement, 103kW rated power, and Euro IV compliance, this engine is widely used in medium/light-duty trucks and 4×2 vans. Our parts are tailored for its low-noise, fuel-efficient (199g/kW·h) design, meeting routine maintenance and emergency repair needs.
Parts Coverage
Our parts cover core systems of the engine: power core (cylinder block, piston, crankshaft damper), fuel & emission (injection pump, turbocharger, EGR), lubrication & cooling (oil pump, filter, water pump), and electrical & auxiliary (alternator, starter, ECU). EWP-marked wear parts are easy to identify.
Quality Assurance
All parts adhere to Yuchai’s technical standards, with part numbers matching the original catalogue. Key components use high-strength materials; wear parts pass strict tests. We offer an 18-month or 150,000km warranty, plus 24-hour English technical guidance and global after-sales service for seamless installation.
Practical Tips
For accurate selection, reference the original part number or provide your engine’s production batch. Our parts restore fuel efficiency and dynamic performance, minimizing downtime. Bulk orders enjoy preferential pricing—contact our team for tailored recommendations and support.
Detail Parts List

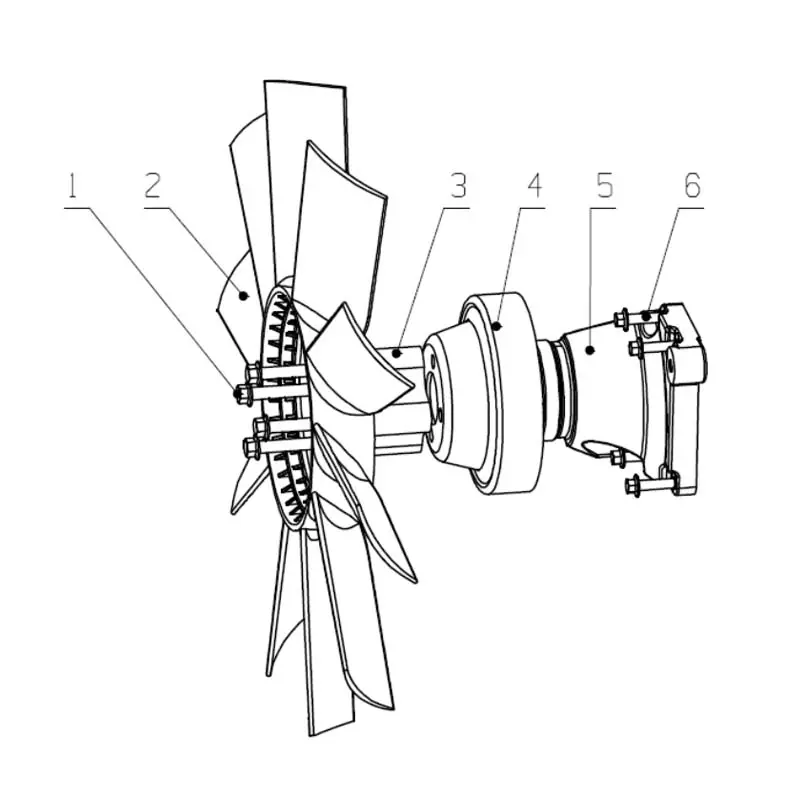

1、 S5500-1308000/01 Fan Assembly
|
No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
Q1841065TF2 |
Bolt M10×65 |
4 |
|
|
2 |
S53YA-1308150 |
Fan belt |
1 |
|
|
3 |
F31D8-1308102 |
Spacer block |
1 |
|
|
4 |
S2000-1308302 |
Air fan belt pulley |
1 |
|
|
5 |
S2000-1308300A |
Fanshaft part |
1 |
|
|
6 |
Q1840830TF2 |
Bolt M8×30 |
4 |

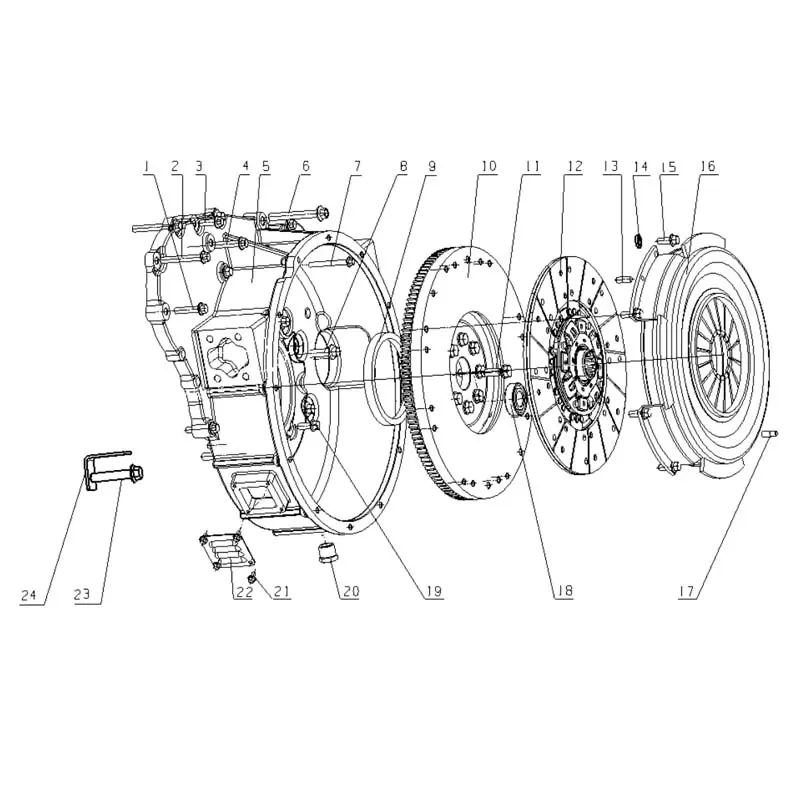

2、S55D1-1600000/02 Power Output Assembly
|
No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
Q1841045TF2 |
Bolt M10X45 |
2 |
|
|
2 |
Q1841075TF2 |
Bolt M10X75 |
2 |
|
|
3 |
Q1841030TF2 |
Bolt M10X30 |
1 |
|
|
4 |
Q1841090TF2 |
Bolt M10X90 |
2 |
|
|
5 |
S5500-1600401 |
Flywheel case |
1 |
|
|
6 |
Q1841290TF2 |
Bolt M12X90 |
1 |
|
|
7 |
Q1840870TF2 |
Bolt M8X70 |
1 |
|
|
8 |
Q1841275TF2 |
Bolt M12X75 |
6 |
|
|
9 |
YC209-C130150PL |
Oil seal 130X150 |
1 |
Easy Weat Part |
|
10 |
S52LA-1005360 |
Flywheel and geared ring parts |
1 |
|
|
11 |
S2000-1005363 |
Flywheel bolt |
8 |
|
|
12 |
D350L-1600740 |
Clutch driven disc parts |
1 |
|
|
13 |
330-1600032 |
locating pin |
1 |
|
|
14 |
Q40310 |
Washer 10 |
8 |
|
|
15 |
Q150B1028TF2 |
Bolt M10X25 |
8 |
|
|
16 |
E02F6-1600750 |
Clutch cover and disc parts |
1 |
|
|
17 |
330-1600033 |
locating pin |
1 |
|
|
18 |
GB/T276-6205-2RS1 |
Bearing 6205-2RS1 |
1 |
Easy Weat Part |
|
19 |
Q1841025TF2 |
Bolt M10X25 |
3 |
|
|
20 |
Q618B06 |
Plug NPT3/4 |
1 |
|
|
21 |
Q1840612 |
Bolt M6X12 |
4 |
|
|
22 |
B3000-1600021 |
Cover plate |
1 |
|
|
23 |
Q1841050TF2 |
Bolt M10X50 |
1 |
|
|
24 |
S56D1-3823202 |
Wire clamp Ⅱ |
1 |

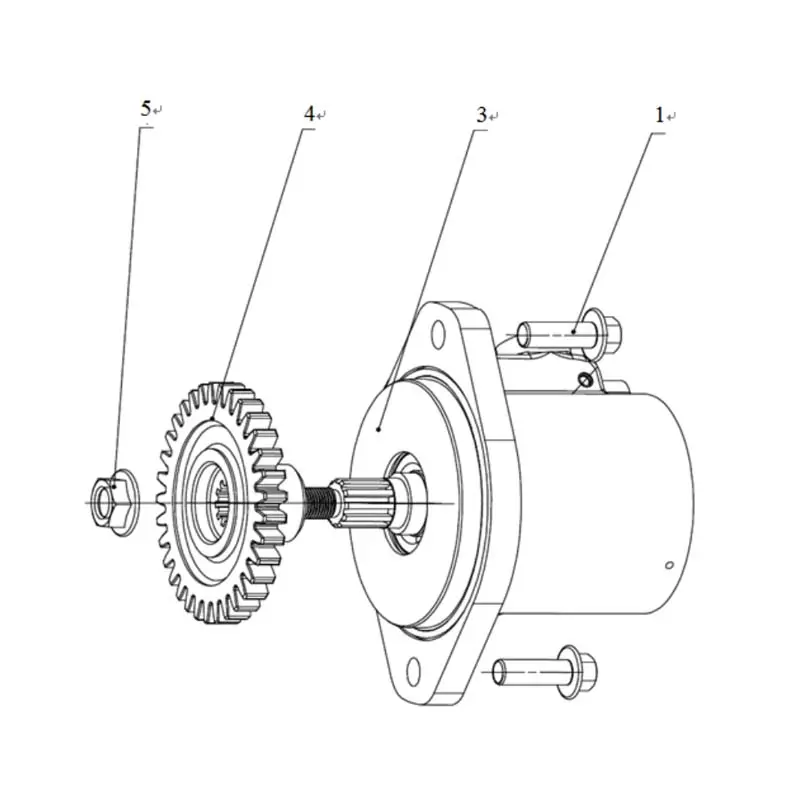

3、S5500-3407000/01 Steering Pump Assembly
|
No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
Q1841025 |
Bolt M10 X 25 |
2 |
|
|
2 |
S5500-3407100 |
Steering Pump |
1 |
|
|
3 |
S2000-3407001 |
Steering gear pump |
1 |
|
|
4 |
GB/T6177.2-12125 |
Nut M12X1 .25 |
1 |

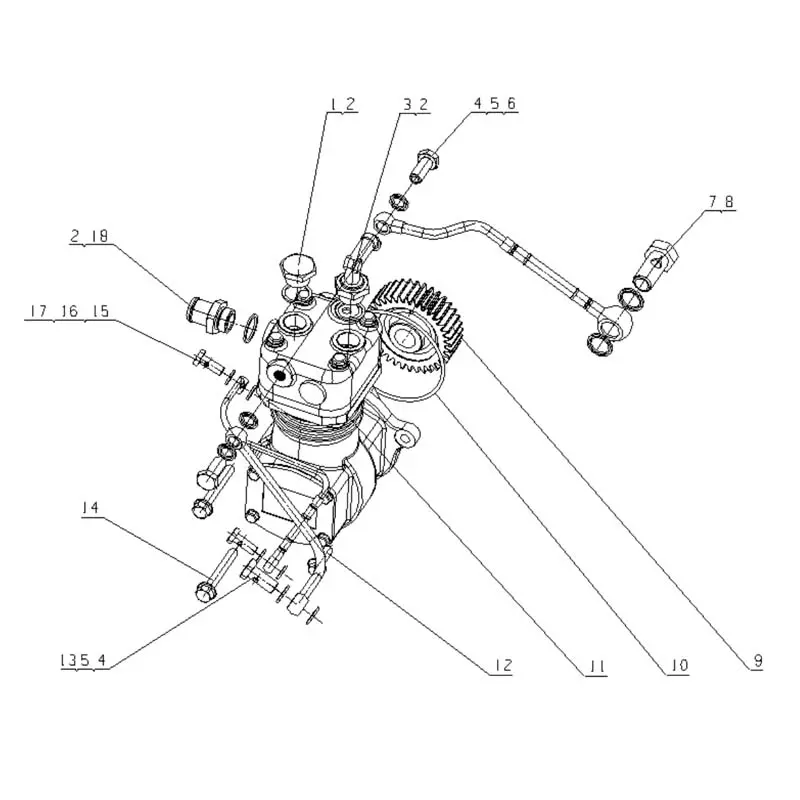

4、S5500-3509000/01 Air Compressor Assembly
|
No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
E0300-3509015 |
Blockage |
1 |
|
|
2 |
G4606-3509014 |
Seal washer |
3 |
Easy Wear Part |
|
3 |
G0219-3509070 |
Exhaust connector components |
1 |
|
|
4 |
6QA6-1307017 |
Water outlet pipe assembly, air compressor |
3 |
|
|
5 |
Q/YC149-14 |
Seal washer 14 |
6 |
Easy Wear Part |
|
6 |
S6000-3509440 |
Return pipe components, air compressor |
1 |
|
|
7 |
644-1013003 |
Link Bolt |
1 |
|
|
8 |
Q/YC149-22 |
Seal washer 22 |
2 |
Easy Wear Part |
|
9 |
S2000-3509001 |
Air compressor gear |
1 |
|
|
10 |
YC208-C11200F |
O-ring3.55X112 |
1 |
Easy Wear Part |
|
11 |
S6000-3509100A |
Air compressor |
1 |
|
|
12 |
Q1841030TF2 |
Bolt M10X30 |
1 |
|
|
13 |
S6000-3509340 |
Water inlet components, air compressor |
1 |
|
|
14 |
Q1841070TF2 |
Bolt M10X70 |
2 |
|
|
15 |
M3000-1002701A |
Oil Bolt |
2 |
|
|
16 |
Q/YC149-10 |
Seal washer 10 |
4 |
Easy Wear Part |
|
17 |
S6000-3509240 |
Oil-taking pipe, air compressor |
1 |
|
|
18 |
A4130-3509011 |
Oil inlet pipe assembly, air compressor |
1 |

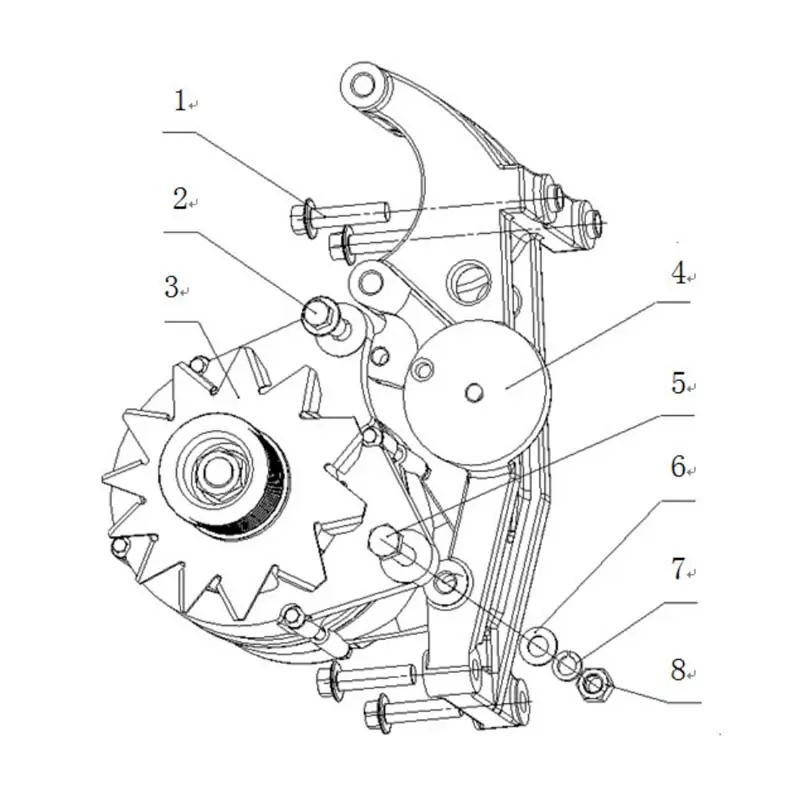

5、S5500-3701000/02 Generator assembly
|
No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
Q1841040TF2 |
Bolt M10×40 |
4 |
|
|
2 |
Q1841030 |
Bolt M10×30 |
1 |
|
|
3 |
S5500-3701100 |
Alternator |
1 |
|
|
4 |
S5500-3701002A |
Alternator Bracket |
1 |
|
|
5 |
Q150B10140TF2 |
Bolt M10×140 |
1 |
|
|
6 |
Q40110 |
Washer 10 |
1 |
|
|
7 |
Q40310 |
Washer 10 |
1 |
|
|
8 |
Q340B10 |
Nut M10 |
1 |
Product Advantages
●100% Yuchai OEM Genuine Parts：Produced on Yuchai’s original production line, 1:1 matching the engine.
●Perfect Fitment：Precision-machined to meet YC4S140-48(S56D1) technical specifications, no modification needed.
●Durable&Reliable：High-quality materials, passed 300,000+ working hours test.
●Global Warranty：12-month warranty, free replacement for quality issues.
●One-Stop Supply：Covers all parts of the engine, simplifying procurement.
Payment & Shipping Terms
● MOQ: 1 piece
● Packaging: Customizable wooden crate/carton
● Delivery: 3-20 working days (express: DHL/FedEx; sea freight for bulk)
● Payment: L/C, T/T, Western Union; tracking number provided in 24hrs
● After-Sales Service：24-hour technical support, global service network
